Multi Works 600 納升級96/384/156自動移液系統
使用全球唯一的納升級注射器技術
1.可以分裝 96- / 384- / 1536-well plates
2.低成本,高性價比
3.可進行8, 12, 16 and 24 wells分裝或者梯度稀釋
4.和堆板機結合實現快速高通量自動化移液.
5.用于藥物篩選,蛋白結晶篩選,診斷試劑分裝,低密度芯片制作
(按Ctrl點擊)
性能

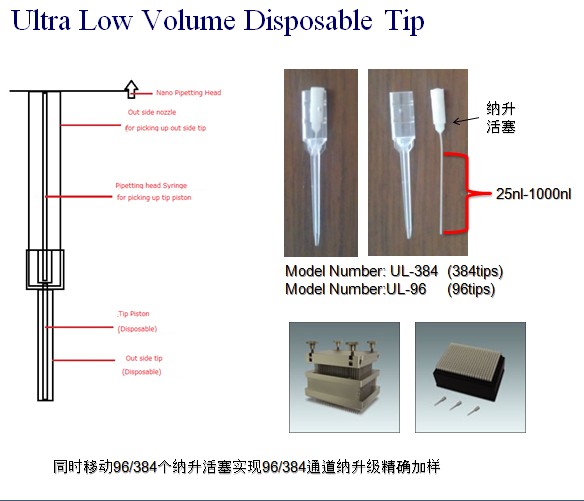

1.低至25nl超低分液頭96/384技術,實現96/384通道的nl級精準加樣
2. 多種應用方向
藥物篩選
蛋白結構
細胞毒理學
激酶篩選
- Automatic Tip Changer
It replaces tips from a tip rack on a stage automatically, inserting the nozzle holder under the pipetting head.
If you take tip changes automatic, you dont have to replace tip by hand.
- Manual Tip Change
Replacing tips is done with inserting the tip holder under the pipetting head. If you take tip changes manual, you can save space because you dont need place for a tip rack.
- Pipetting Head
The system has high maintainability because users can change the pipetting heads very easily.
- Dispensing Stage
The system has 8 stages and each can accommodate SBS standard vessels. There is no need for replacing tips and plates while transferring liquid in 4 96-well plates to 1 384-well plate through the operation.
- Dispensing Mode
Serial dispensation to 8, 12, 16 and 24 wells and serial dilution is available as wel as 96 / 384ch dispensation.
- Software
User friendly and easy to understand control software lets everybody write programs.
Option
Connecting with Multi Stacker 400 ( sold separately ), it can process up to 150 plates without any interruption by itself.
* Multi Stacker 400 can be set both right and left side of Multi works 600 each. ( up to 2 stackers )
|
